Type：90 Degrees
Specs：90 Degree Elbow Bevelling Machine
Brand：
Price：￥negotiation
+86 15175722583

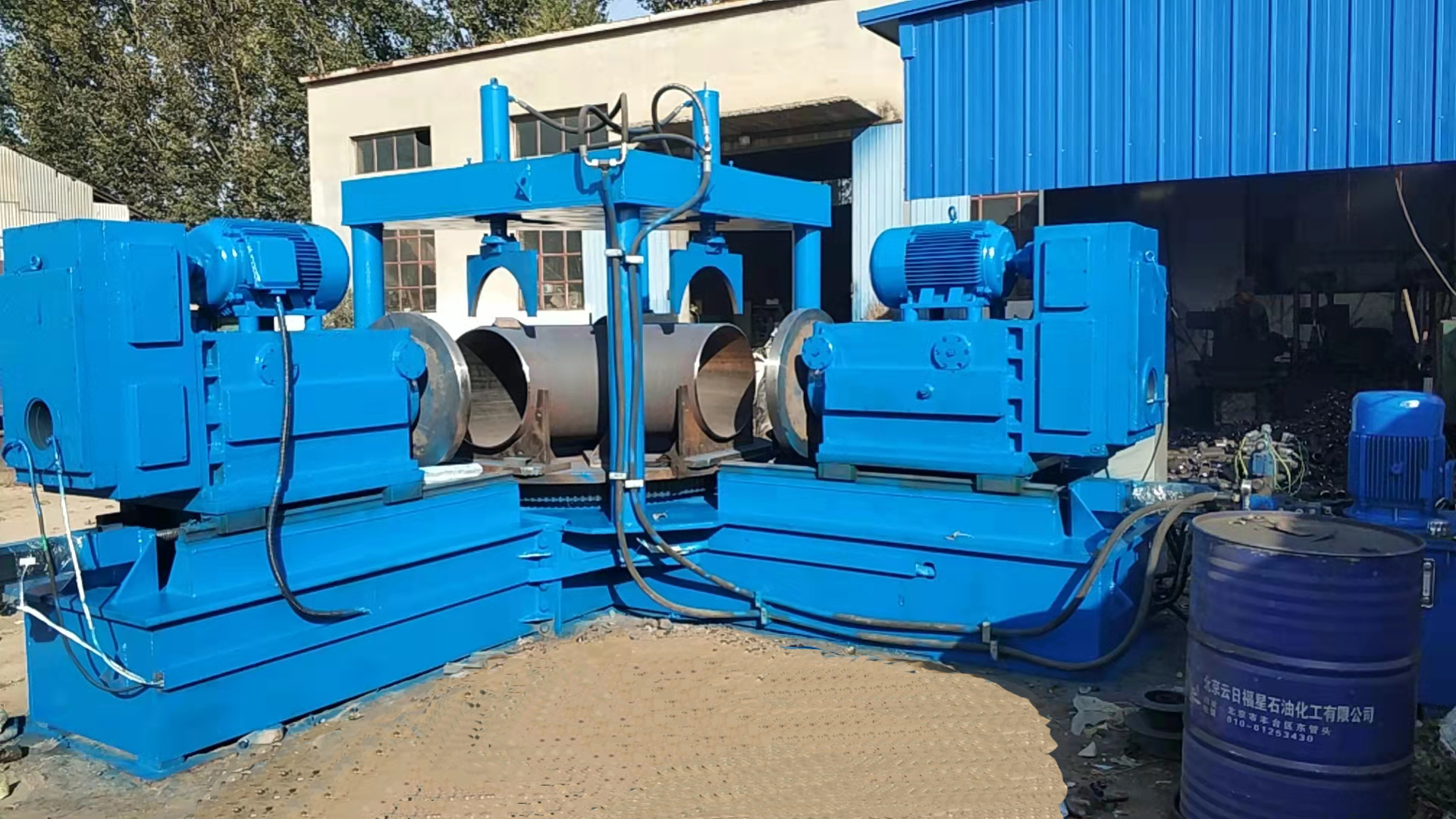

90 Degree Elbow Bevelling Machine

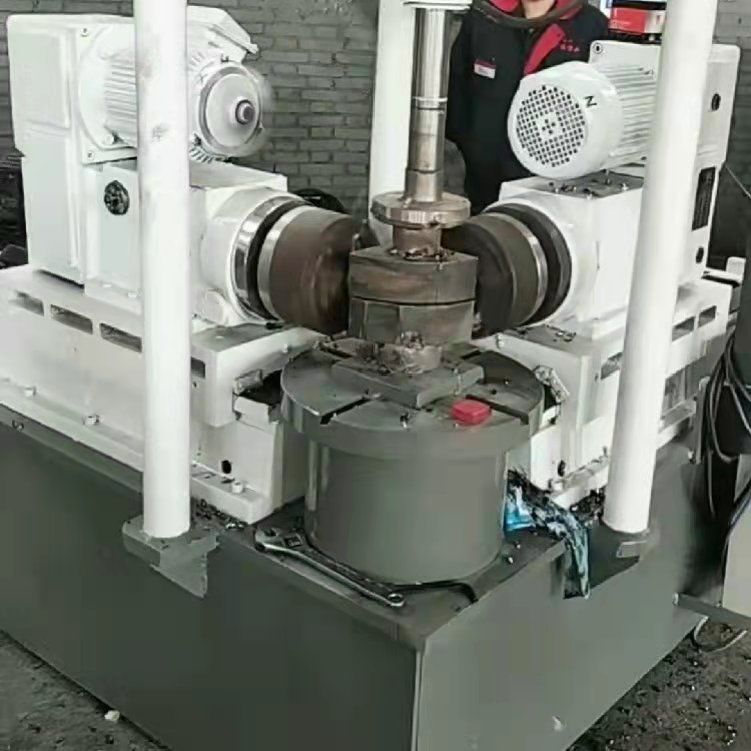

90 -degree elbow bevelling machine is mainly used all kinds of cold push, hot push 90-degree elbow bevelling, it adopts double power head, servo motor ball screw feed, double station design. It has the advantages of durable leather, strong power and high processing efficiency.
90 DEGREEELBOW DOUBLE-END BEVELLING MACHINE
Equipment is divided into mechanical main body, hydraulic system and electrical control system.
Equipment are:
1. X, Y axis feed adopts servo motor ball screw, fast speed, accurate positioning
2. Double - station design is adopted, with one station groove and one station loading and unloading materials, with high processing efficiency.

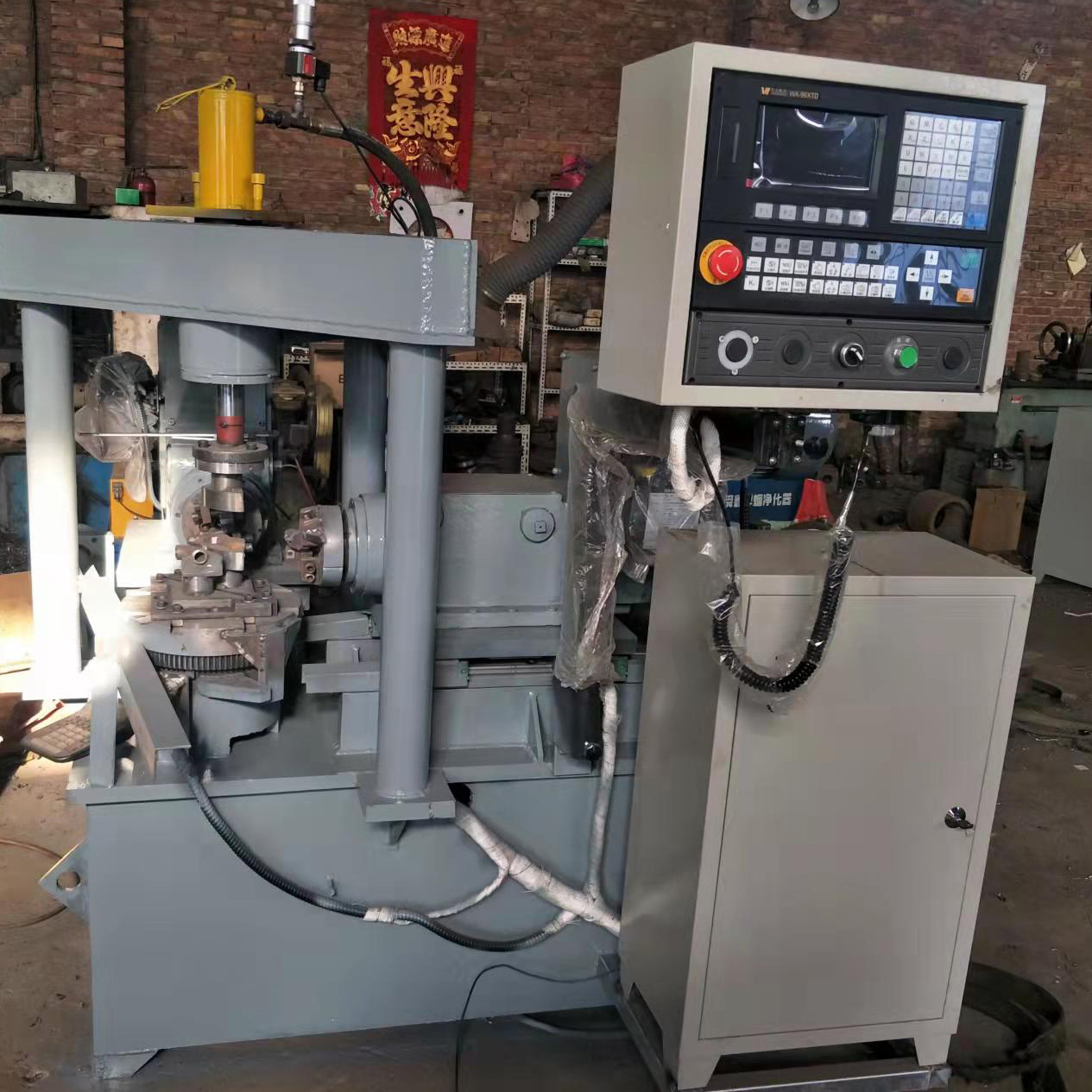

3. Huaxing CNC system is adopted, which is easy to program and operate.
Model Type | Processing Scope | maximum wall thickness (mm) | X-axis feed | Y- axis feed | Elbow Clamping Type | 180 Degree Rotation Type | Tyre positioning Locating Type | Total power (Kw) | CNC System | Equipment Weight (T) |
| 60 | 60-21.6 | 8 | Servo Motor | Servo Motor | Hydraulic | Hydraulic | 16 | Huaxing WASHING | 2 | |
| 89 | 89-48 | 7.62 | Servo Motor | Servo Motor | Hydraulic | Hydraulic | 25 | Huaxing WASHING | 2.2 | |
| 114 | 114-73 | 8.56 | Servo Motor | Servo Motor | Hydraulic | Hydraulic | 32 | Huaxing WASHING | 2.5 | |
| 168 | 168-114 | 8.56 | Servo Motor | Servo Motor | Hydraulic | Hydraulic | Hydraulic | 32 | Huaxing WASHING | 3.2 |
| 219 | 219-133 | 14-16 | Servo Motor | Servo Motor | Hydraulic | Hydraulic | Hydraulic | 35 | Huaxing WASHING | 4 |
| 426 | 219-426 | 14-16 | Servo Motor | Servo Motor | Hydraulic | Hydraulic | Hydraulic | 54 | Huaxing WASHING | 7.5 |
| 630 | 426-630 | 14-16 | Servo Motor | Servo Motor | Hydraulic | Hydraulic | Hydraulic | 100 | Huaxing WASHING | 16 |
